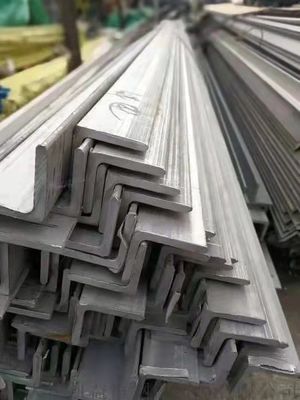

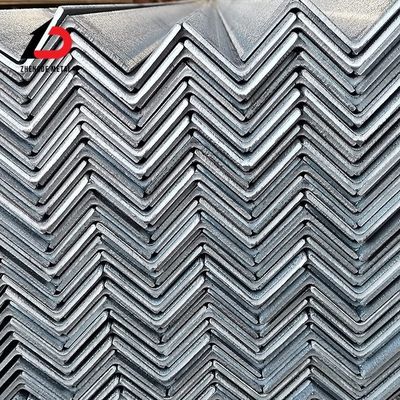

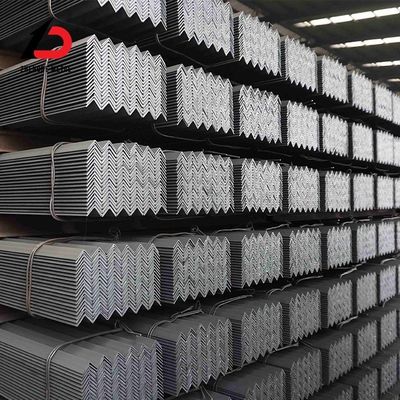

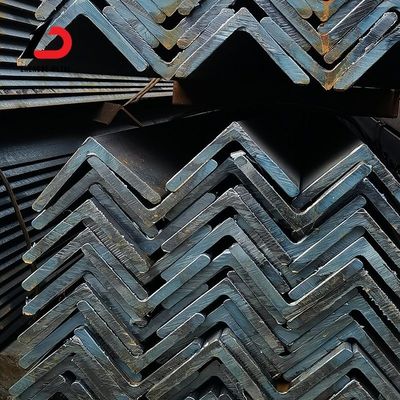

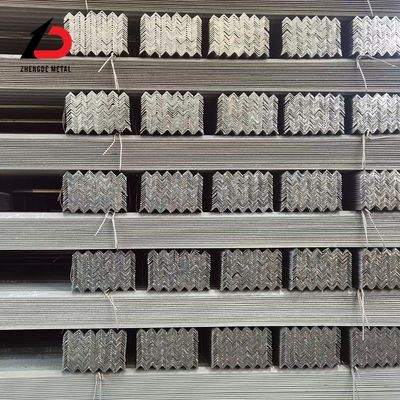

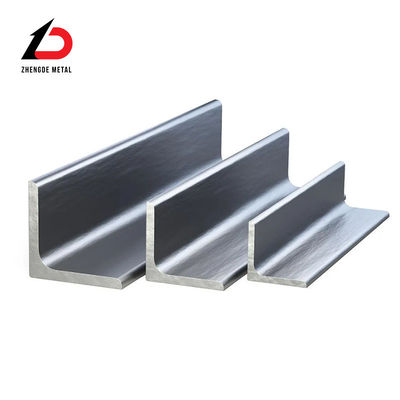

Zhengde Brief introduction of angle steel: Angle steel can be composed of various stress components according to different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, busbar support installation, and warehouses shelves etc...
| Sectional properties and theoretical weight of hot-rolled equilateral angle steel | ||||||||||||||||
| Size(mm) | CSA | Theoretical Weight | center | consistency | resistance…Wx | Radius of gyration | Double angle steel turning radius…iy…(cm) | |||||||||
| Wing width | wing | radius | A | y0 | Ix | MAX | MIN | ix | iu | iv | a(mm): | |||||
| b | t | R | (cm2) | kg/m | (cm) | cm4 | cm3 | cm | cm | cm | 0 | 6 | 8 | 10 | 12 | |
| 20 | 3 | 3.5 | 1.13 | 0.89 | 0.60 | 0.40 | 0.66 | 0.29 | 0.59 | 0.75 | 0.39 | 0.85 | 1.08 | 1.17 | 1.25 | 1.34 |
| 4 | 1.46 | 1.15 | 0.64 | 0.50 | 0.78 | 0.36 | 0.58 | 0.73 | 0.38 | 0.87 | 1.11 | 1.19 | 1.28 | 1.37 | ||
| 25 | 3 | 3.5 | 1.43 | 1.12 | 0.73 | 0.82 | 1.12 | 0.46 | 0.76 | 0.95 | 0.49 | 1.05 | 1.27 | 1.36 | 1.44 | 1.53 |
| 4 | 1.86 | 1.46 | 0.76 | 1.03 | 1.34 | 0.59 | 0.74 | 0.93 | 0.48 | 1.07 | 1.30 | 1.38 | 1.43 | 1.55 | ||
| 30 | 3 | 4.5 | 1.75 | 1.37 | 2.85 | 1.46 | 1.72 | 0.68 | 0.91 | 1.15 | 0.59 | 1.27 | 1.47 | 1.55 | 1.63 | 1.71 |
| 4 | 2.28 | 1.79 | 0.89 | 1.84 | 2.08 | 0.87 | 0.90 | 1.13 | 0.58 | 1.26 | 1.49 | 1.57 | 1.65 | 1.74 | ||
| 36 | 3 | 4.5 | 2.11 | 1.66 | 1.00 | 2.58 | 2.59 | 0.99 | 1.11 | 1.39 | 0.71 | 1.49 | 1.70 | 1.78 | 1.86 | 1.94 |
| 4 | 2.76 | 2.16 | 1.04 | 3.29 | 3.18 | 1.28 | 1.09 | 1.38 | 0.70 | 1.51 | 1.73 | 1.80 | 1.89 | 1.97 | ||
| 5 | 3.38 | 2.65 | 1.07 | 3.95 | 3.68 | 1.56 | 1.08 | 1.36 | 0.70 | 1.52 | 1.75 | 1.83 | 1.91 | 1.99 | ||
| 40 | 3 | 5 | 2.36 | 1.85 | 1.09 | 3.59 | 3.28 | 1.23 | 1.23 | 1.55 | 0.79 | 1.65 | 1.86 | 1.94 | 2.01 | 2.09 |
| 4 | 3.09 | 2.42 | 1.13 | 4.60 | 4.05 | 1.60 | 1.22 | 1.54 | 0.79 | 1.66 | 1.88 | 1.96 | 2.04 | 2.12 | ||
| 5 | 3.79 | 2.98 | 1.17 | 5.53 | 4.72 | 1.96 | 1.21 | 1.52 | 0.78 | 1.68 | 1.90 | 1.98 | 2.06 | 2.14 | ||
| 45 | 3 | 5 | 2.66 | 2.09 | 1.22 | 5.17 | 4.25 | 1.58 | 1.39 | 1.76 | 0.90 | 1.85 | 2.06 | 2.14 | 2.21 | 2.29 |
| 4 | 3.49 | 2.74 | 1.26 | 6.65 | 5.29 | 2.05 | 1.38 | 1.74 | 0.89 | 1.87 | 2.08 | 2.16 | 2.24 | 2.32 | ||
| 5 | 4.29 | 3.37 | 1.30 | 8.04 | 6.20 | 2.51 | 1.37 | 1.72 | 0.88 | 1.89 | 2.10 | 2.18 | 2.26 | 2.34 | ||
| 6 | 5.08 | 3.99 | 1.33 | 9.33 | 6.99 | 2.95 | 1.36 | 1.71 | 0.88 | 1.90 | 2.12 | 2.20 | 2.28 | 2.36 | ||
| Contact Zhengde Metal for more detailed angle steel parameter information | ||||||||||||||||
Quality first: production and inspection in strict accordance with production standards;
Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
