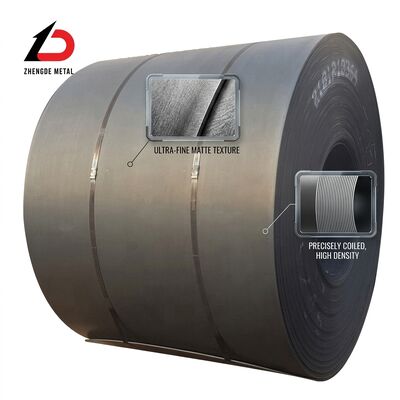

HC260LA Cold Rolled Micro Alloyed Steel Coil 0.6-2.5mm EN 10268 Automotive Chassis Bracket

The HC260LA cold rolled micro alloyed steel coil combines a guaranteed 260 MPa yield strength with the deep drawing behavior that automotive stamping lines depend on. Zhengde produces the grade through continuous pickling, cold tandem rolling, full continuous annealing and a final skin pass, with niobium and titanium additions that refine the grain and deliver stable mechanical properties from coil start to finish. The bright skin-passed surface carries a controlled roughness that prepares the strip for phosphating and e-coating in automotive finishing lines. Thickness from 0.6mm to 2.5mm and width to 1500mm are rolled to tight EN 10131 tolerances, and slit edges are deburred to protect high speed tooling. Each order is released with tensile and hardness test reports, and material declarations for automotive OEM documentation are available on request.

• Consistent Strength for Structural Stampings Niobium and titanium micro-alloying with full continuous annealing gives stable 260-330 MPa yield, ideal for load-bearing brackets and reinforcements
• Excellent Formability High r and n values support deep drawing of complex chassis geometries without splitting, keeping dimensional accuracy over long production runs
• Precision Gauge Control Cold rolling with automatic gauge control holds thickness within tight bands, protecting downstream welding and assembly tolerances
• Clean Surface for Coating Lines Bright skin-passed surface carries consistent roughness for phosphating and e-coating, which is important for corrosion protection systems
• Edge Quality Deburred slit edges eliminate micro-cracks during high speed stamping and roll forming
• Automotive Documentation IMDS data and EN 10204 3.1 mill certificates are provided to support OEM material declarations

HC260LA is a workhorse grade for automotive structural stampings that must combine strength with formability: suspension and chassis brackets, seat rails and recliner parts, door belt reinforcements, floor panel cross members and body mount reinforcements. It is also used for white goods structural frames and office furniture components where dent resistance matters. The grade is available in bare cold rolled finish for direct stamping and subsequent surface treatment.

Zhengde supplies HC260LA with full inspection certificates, hardness and tensile verification per coil, and optional SGS or BV inspection. Coils are packed with anti-rust paper and vapor phase inhibitor film for export. Delivery is 7-15 days from stock and 20-30 days for production orders under ISO 9001:2015 quality management.
