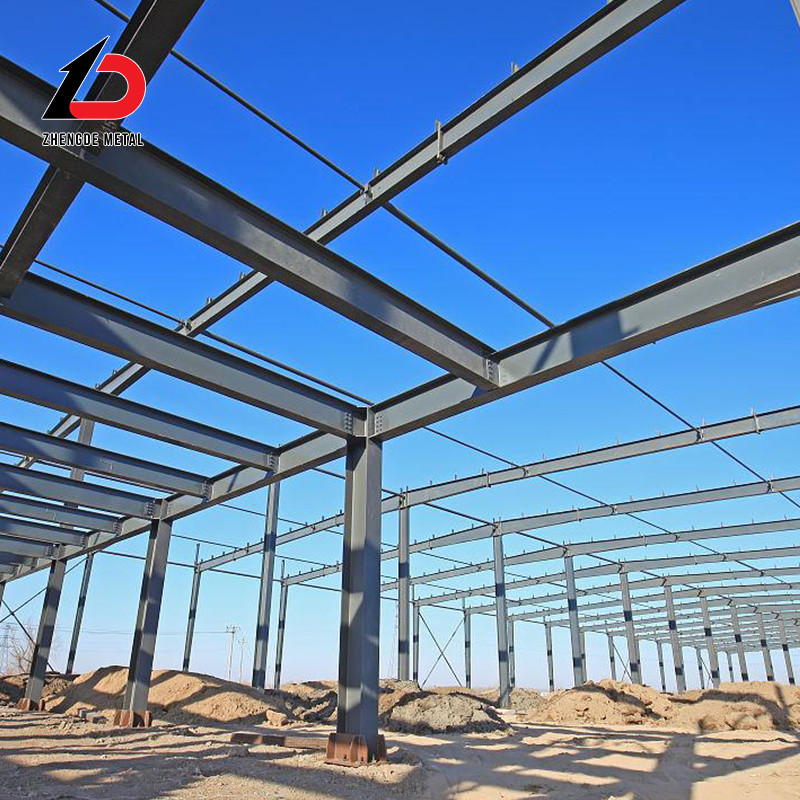

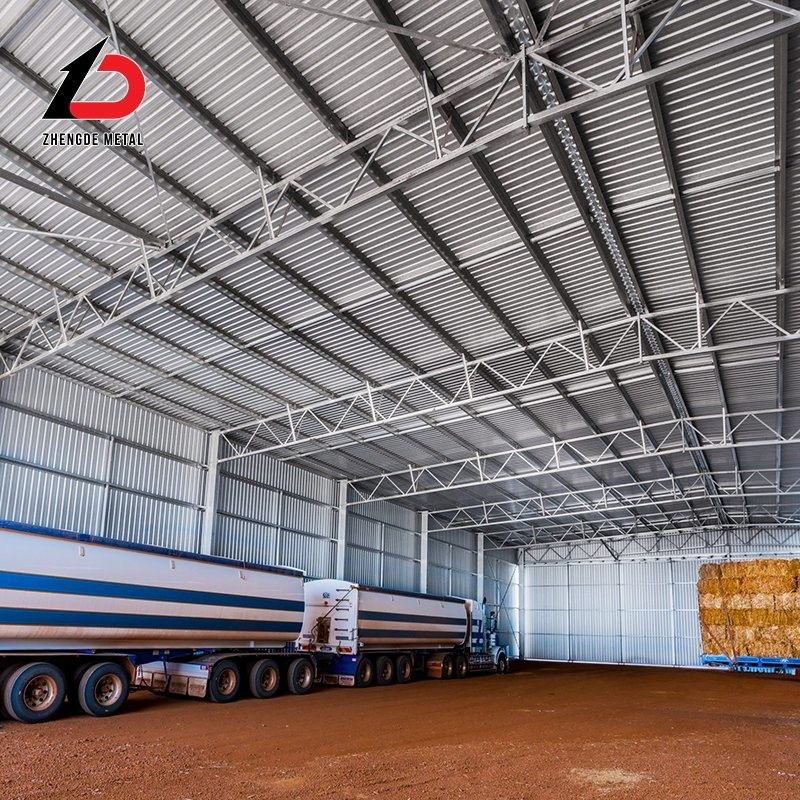

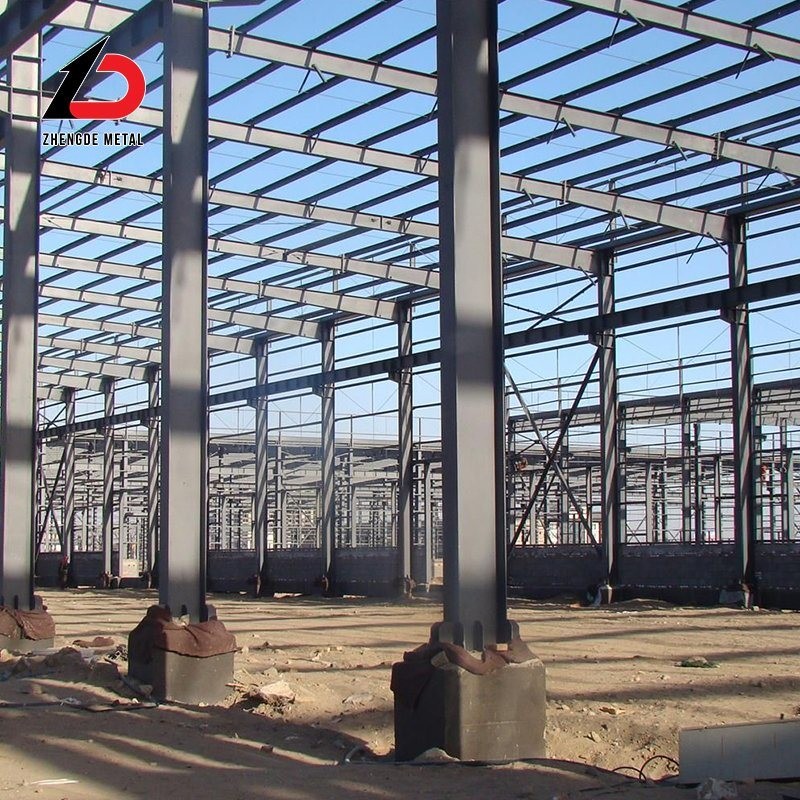

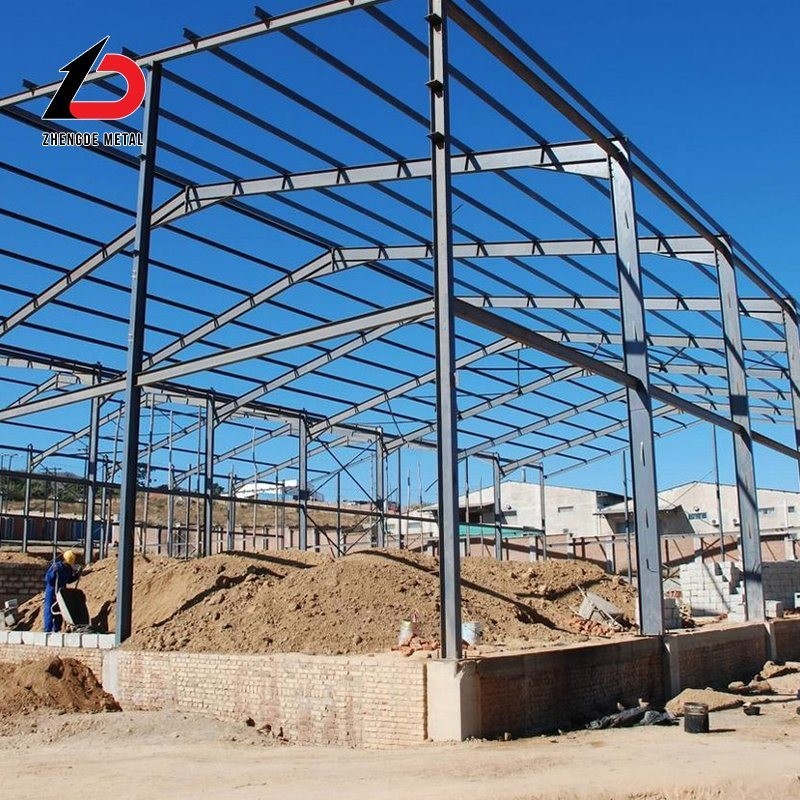

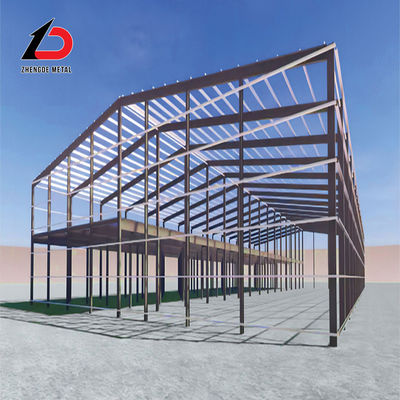

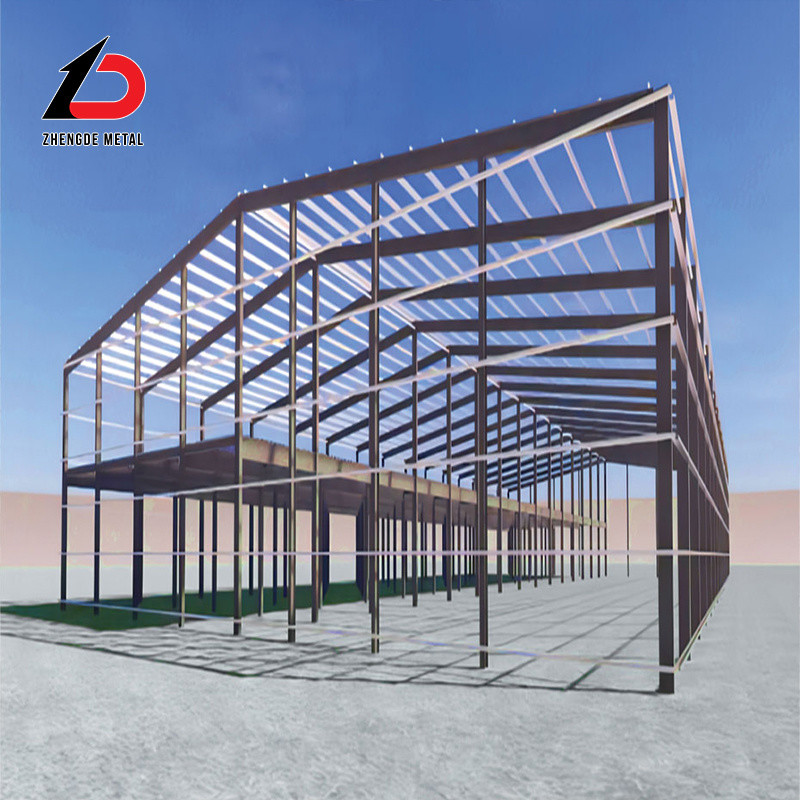

Steel structure, also called steel frame, refers to the form of building structure that uses steel components to bear loads. It usually consists of vertical steel columns and horizontal I-beams forming a skeleton in a rectangular grid to support the floors and roofs of the building. and walls. SC technology makes the construction of skyscrapers possible. Mainly used in industrial plants, long-span structures, high-rise structures, multi-high-rise civil buildings, structures with high dynamic load and seismic resistance requirements, plate and shell structures, detachable structures, light steel structures, and reinforced concrete composite structures, etc
| Components | Specifications | |
| Embedded Parts | Anchor Bolt | M30*1050 |
| High Strength Bolt | M20,10.9S | |
| Common Bolt | M20 | |
| Galvanized Bolt | M12 | |
| Shear Nail | M19*80 | |
| Tir Rod | Φ12 | |
| Brace Rod | Φ32*2.5 | |
| Self-tapping Screw | M5 | |
| Main Steel structure parts |
Steel Column(Q355B) | H500X250X8X12,H450X220X8X12 ,H300~700X250X6X10 |
| Wind Column(Q355B) | H400X200X6X8 | |
| Roof Frame Beam(Q355B) | H700~450X200X6X10,H450X200X6X10 | |
| Main Beam(Q355B) | H600X220X8X14 | |
| Secondly Beam(Q355B) | HN346X174X6X9 | |
| Ring Beam(Q235B) | 100*1.8 | |
| Stairs | [20U-steel+3mm Riffled plate | |
| Roof Purlin(Q235B) | C120*50*20*2.0 | |
| Tir Bar(Q235B) | Φ140*4.0 | |
| Column Brace | Φ140*4.0 | |
| Horizontal Brace | Φ25 Round bar | |
| Angle Brace | L50*4.0 | |
| Roof Purlin(Q235B) | Z250X75X20X2.2 | |
| Wall Purlin(Q235B) | C220X70X20X2.2 | |
| Connecting Panel(Q355B) | 6-20MM steel panel | |
| Other Steel structure parts | Rolling Gate(including motor) | 4000X3500X2 PCS,3200X3500X1 PCS |
| Aluminum Louvers | 1m high | |
| Grating +Hand rail | 1m high | |
| Floor Deck | 1.0Thickness 880# | |
| Damper | 2.0Thickness Galvanized panel | |
| Roof Panel | 50mmThickness rock sandwich panel | |
| External Wall panel | 50mm Thickness rock sandwich panel | |
| Trimming | 0.5 thickness | |
| Down pie(including parts) | φ110PVC | |
| Gutter (including parts) | 1.2 Thickness of stainless gutter | |
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.
Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Middle East region, Russia, Africa, North America, and other parts of the world.
Company Philosophy:
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.
If you encounter dishonest manufacturers during the procurement process, we can provide you with a professional legal team. We hope our cooperation is full of sunshine!
Welcome to the company for investigation and cooperation, and look forward to friendly cooperation with you!
Thank you for your support to our company. We are pleased to receive your inquiry and will reply to you as soon as possible.
