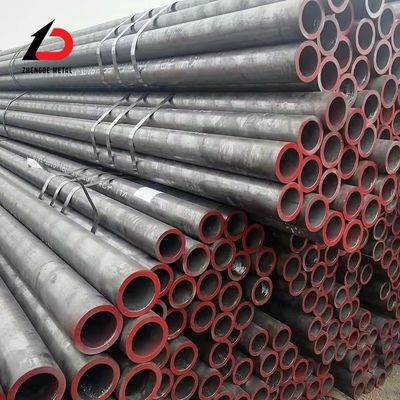

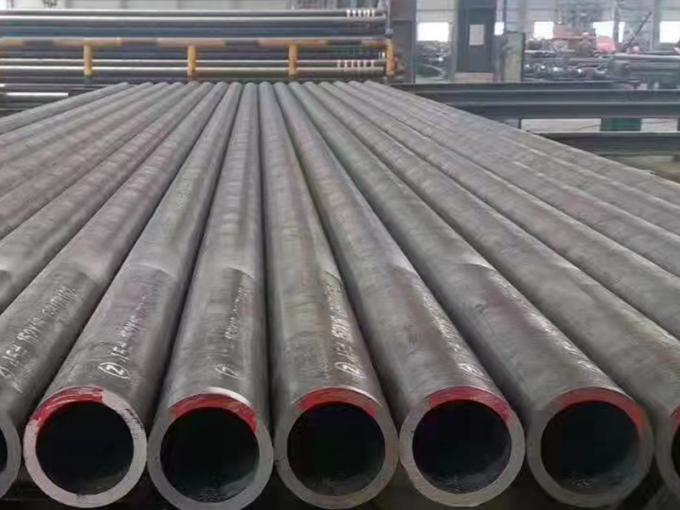

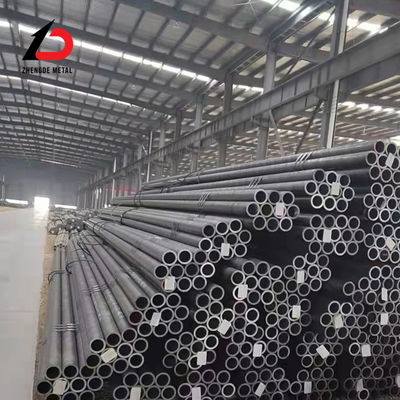

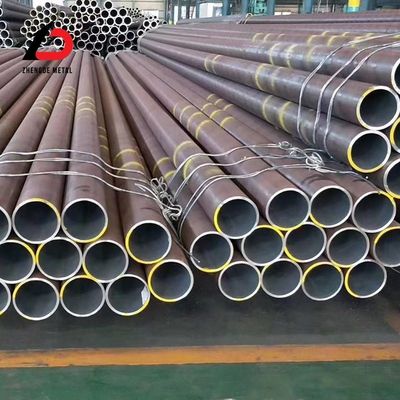

16MnDG seamless steel pipe implementation standard - GB/T18984-2016, the materials in this type of low-temperature seamless pipe standard are: 09MnDG, 10MnDG, 16MnDG, 09Mn2VDG, of which the chemical composition of 16MnDG seamless pipe is the same as that of American standard A333Gr.6 low-temperature steel pipe Basically the same as the mechanical properties.
16MnDG seamless steel pipe is a kind of material in low temperature resistant seamless pipe, also known as 16MnDG low temperature steel pipe, its overall material is the prototype of 16Mn, the suffix letter DG means low temperature and high pressure, that is to say, at minus 40 ºC Seamless steel pipes that can withstand high-strength pressure in low-temperature environments
16MnDG seamless steel pipe products are applied to: seamless steel pipes for -45ºC~-195ºC low-temperature pressure vessel pipes and low-temperature heat exchanger pipes

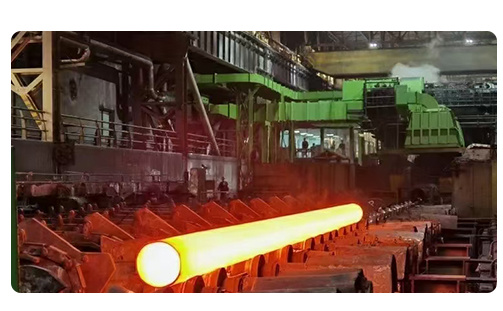

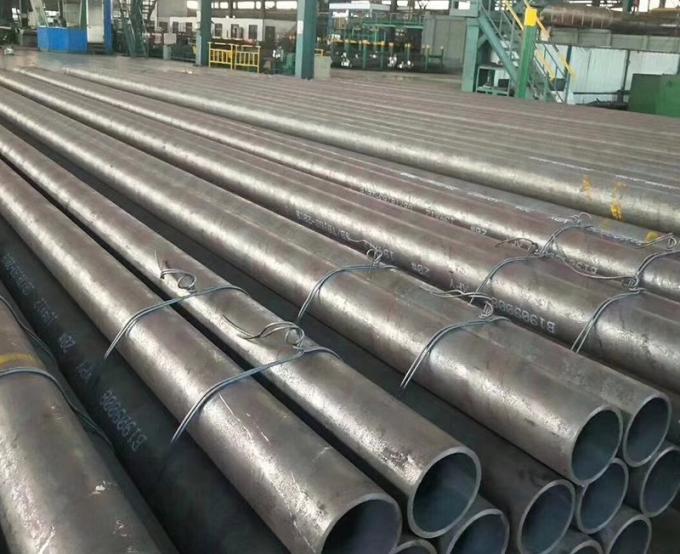

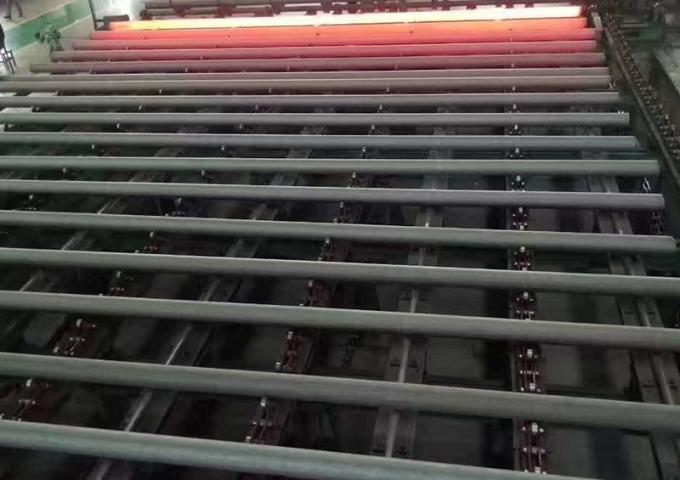

Zhengde hot-rolled seamless steel pipe is a long strip of steel with a hollow section and no joints around it. The steel pipe has a hollow cross-section and is widely used as a pipeline for transporting fluids, such as pipelines for transporting oil, natural gas, gas, water and certain solid materials. Compared with solid steel such as round steel, seamless steel pipe is lighter in weight when the bending and torsional strength is the same. It is an economical section steel and is widely used in the manufacture of structural parts and mechanical parts, such as oil drill pipes and automobile transmission shafts. , bicycle racks and steel scaffolding used in building construction, etc. The use of seamless steel pipes to manufacture ring parts can improve the utilization rate of materials, simplify the manufacturing process, save materials and processing hours, such as rolling bearing rings, jack sets, etc., which have been widely used in steel pipes. Hot-rolled seamless steel pipe is also an indispensable material for various conventional weapons. Gun barrels, barrels, etc. must be made of steel pipes.
thick Φ |
3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 8 | 8.5 | 9 | 10 | 12 |
32 | 2.146 | 2.46 | 2.762 | 3.052 | 3.329 | 3.594 | 3.847 | 4.088 | ||||||
38 | 2.589 | 2.978 | 3.354 | 3.718 | 4.069 | 4.408 | 4.735 | 5.049 | ||||||
42 | 2.885 | 3.323 | 3.749 | 4.162 | 4.562 | 4.951 | 5.327 | 5.691 | ||||||
45 | 3.107 | 3.582 | 4.044 | 4.495 | 4.932 | 5.358 | 5.771 | 6.172 | ||||||
50 | 3.477 | 4.014 | 4.538 | 5.049 | 5.549 | 6.036 | 6.511 | 6.973 | 7.423 | 8.286 | 8.699 | |||
54 | 3.773 | 4.359 | 4.932 | 5.493 | 6.042 | 6.578 | 7.103 | 7.614 | 8.114 | 9.075 | 9.538 | |||
57 | 3.995 | 4.618 | 5.228 | 5.826 | 6.412 | 6.985 | 7.546 | 8.095 | 8.632 | 9.667 | 10.167 | |||
60 | 4.217 | 4.877 | 5.524 | 6.159 | 6.782 | 7.392 | 7.99 | 8.576 | 9.149 | 10.259 | 10.796 | |||
63.5 | 4.476 | 5.179 | 5.869 | 6.548 | 7.214 | 7.867 | 8.508 | 9.137 | 9.754 | 10.95 | 11.529 | |||
68 | 4.809 | 5.567 | 6.313 | 7.047 | 7.768 | 8.477 | 9.174 | 9.858 | 10.53 | 11.838 | 12.473 | |||
70 | 4.957 | 5.74 | 6.511 | 7.269 | 8.015 | 8.749 | 9.47 | 10.179 | 10.876 | 12.232 | 12.892 | 13.539 | 14.797 | 17.164 |
73 | 5.179 | 5.999 | 6.807 | 7.602 | 8.385 | 9.156 | 9.914 | 10.66 | 11.394 | 12.824 | 13.521 | 14.205 | 15.537 | 18.052 |
76 | 5.401 | 6.258 | 7.103 | 7.935 | 8.755 | 9.563 | 10.358 | 11.141 | 11.912 | 13.416 | 14.15 | 14.871 | 16.277 | 18.94 |
89 | 6.363 | 7.38 | 8.385 | 9.378 | 10.358 | 11.326 | 12.281 | 13.225 | 14.156 | 15.981 | 16.875 | 17.756 | 19.483 | 22.787 |
108 | 7.768 | 9.02 | 10.259 | 11.486 | 12.701 | 13.903 | 15.093 | 16.27 | 17.436 | 19.729 | 20.858 | 21.973 | 24.168 | 28.41 |
133 | 11.178 | 12.725 | 14.261 | 15.783 | 17.294 | 18.792 | 20.278 | 21.751 | 24.662 | 26.098 | 27.522 | 30.334 | 35.809 | |
159 | 13.422 | 15.29 | 17.146 | 18.989 | 20.821 | 22.639 | 24.446 | 26.24 | 29.791 | 31.548 | 33.293 | 36.746 | 43.503 | |
219 | 18.601 | 21.209 | 23.805 | 26.388 | 28.959 | 31.517 | 34.064 | 36.598 | 41.629 | 44.126 | 46.61 | 51.543 | 61.259 | |
273 | 23.262 | 26.536 | 29.797 | 33.046 | 36.283 | 39.508 | 42.72 | 45.92 | 52.283 | 55.445 | 58.596 | 64.86 | 77.24 | |
325 | 27.75 | 31.665 | 35.568 | 39.458 | 43.337 | 47.202 | 51.056 | 54.897 | 62.542 | 66.346 | 70.137 | 77.684 | 92.629 | |
355 | 38.897 | 43.158 | 47.406 | 51.641 | 55.865 | 60.076 | 68.46 | 72.634 | 76.796 | 85.082 | 101.507 | |||
377 | 41.339 | 45.871 | 50.39 | 54.897 | 59.391 | 63.873 | 72.801 | 77.246 | 81.679 | 90.508 | 108.018 | |||
426 | 46.777 | 51.913 | 57.036 | 62.147 | 67.246 | 72.332 | 82.468 | 87.518 | 92.555 | 102.592 | 122.519 | |||
450 | 71.093 | 76.475 | 87.203 | 92.549 | 97.882 | 108.511 | 129.621 | |||||||
480 | 75.902 | 81.654 | 93.122 | 98.837 | 104.54 | 115.909 | 138.499 | |||||||
530 | 83.917 | 90.286 | 102.987 | 109.319 | 115.638 | 128.24 | 153.296 | |||||||
630 | 99.947 | 107.549 | 122.716 | 130.281 | 137.833 | 152.902 | 182.89 |
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.

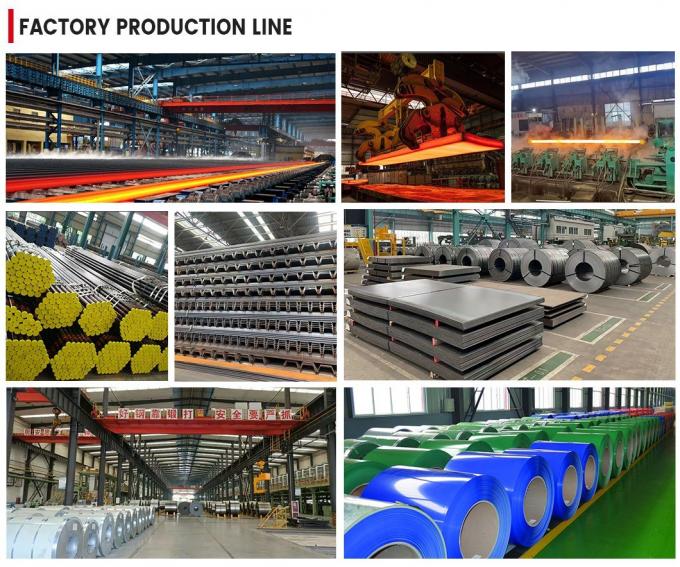

Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
