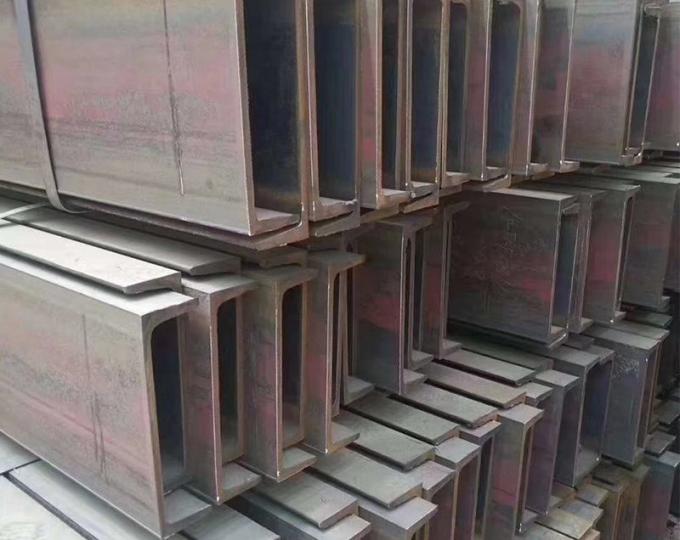

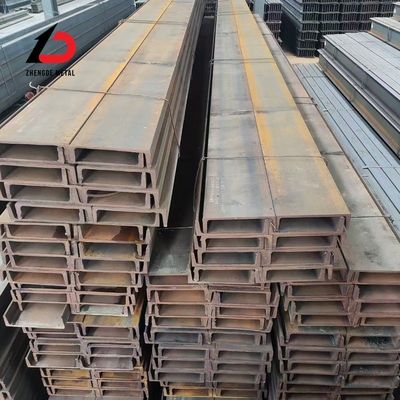

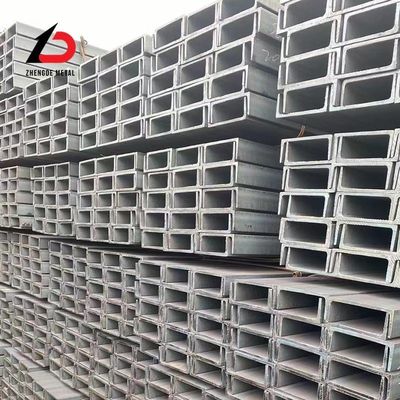

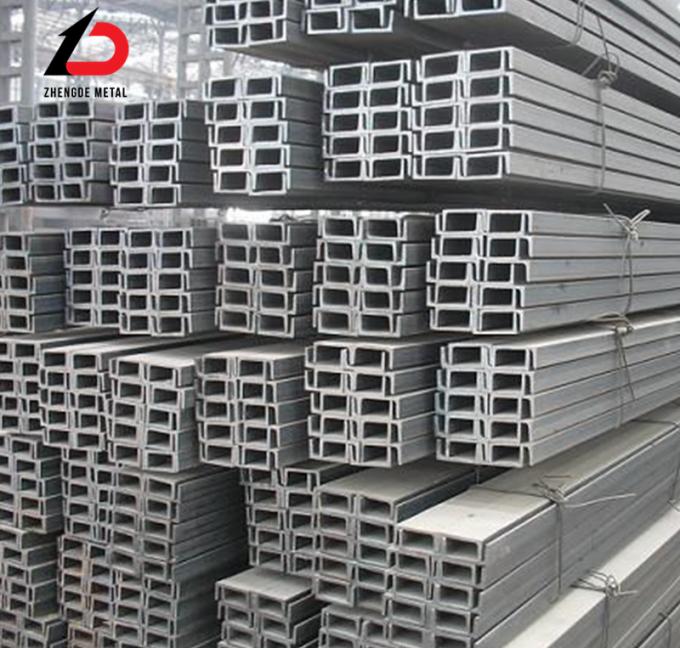

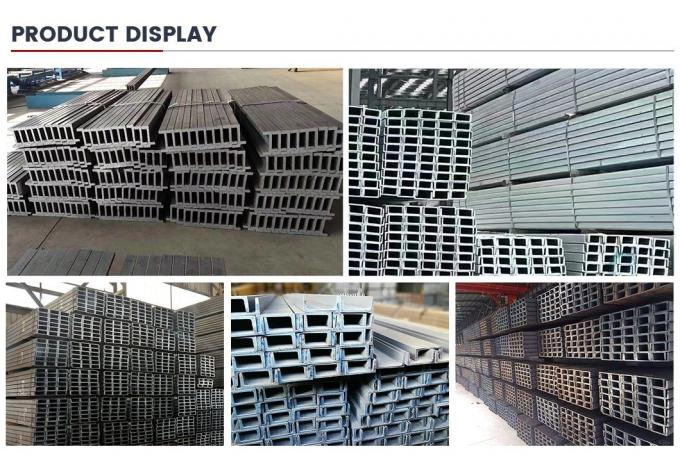

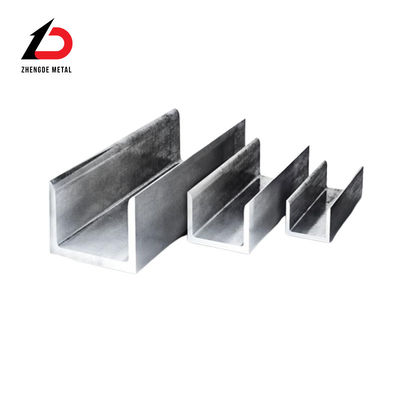

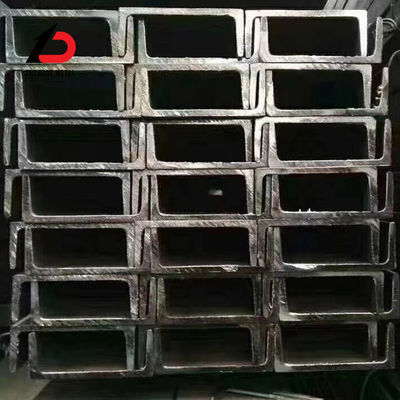

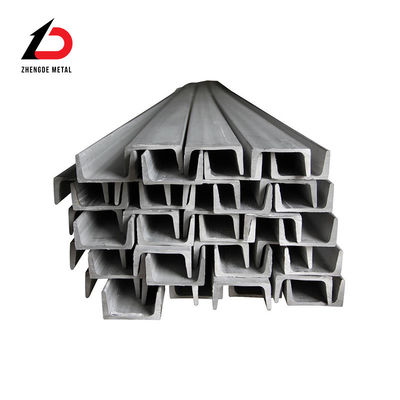

Zhengde U&C Channel steel is U-shaped steel Channel steel: Channel steel is a long strip of steel with a groove-shaped cross-section.
Channel steel is divided into ordinary channel steel and light channel steel. The specifications of hot-rolled ordinary channel steel are 5-40#.
Channel steel can be divided into 4 types according to the shape: cold-formed equal-edge channel steel, cold-formed unequal-edge channel steel, cold-formed inner-curled channel steel, cold-formed outer-curled channel steel
According to the theory of steel structure, the channel steel flange should bear the force, that is to say, the channel steel should stand upright instead of lying down.
Channel steel is mainly used in building structures, vehicle manufacturing and other industrial structures, and channel steel is often used in conjunction with I-beams...
| UPE80 | 80*50*4.5*8 | 8.89 |
| UPE100 | 100*55*5*8.5 | 10.9 |
| UPE120 | 120*60*5.5*9 | 13.2 |
| UPE140 | 140*65*6*9.5 | 15.7 |
| UPE160 | 160*70*6.5*10 | 18.6 |
| UPE180 | 180*75*7*10.5 | 21.6 |
| UPE200 | 200*80*7.5*11 | 24.8 |
| UPE220 | 220*85*8*12 | 28.8 |
| UPE240 | 240*90*8.5*13 | 33.4 |
| UPE270 | 270*95*9*14 | 38.8 |
| UPN65 | 65*42*5*7 | 7.09 |
| UPN80 | 80*45*6*8 | 8.64 |
| UPN100 | 100*50*6*8.5 | 10.6 |
| UPN120 | 120*55*7*9 | 13.4 |
| UPN140 | 140*60*7*10 | 16 |
| UPN160 | 160*65*7.5*10.5 | 18.8 |
| UPN180 | 180*70*8*11 | 22 |
| UPN200 | 200*75*8.5*11.5 | 25.3 |
| UPN220 | 220*80*9*12.5 | 29.4 |
| UPN240 | 240*85*9.5*13 | 33.2 |
| UPN260 | 260*90*10*14 | 37.9 |
| UPN280 | 280*95*10*15 | 41.8 |
| UPN300 | 300*100*10*16 | 46.2 |
| Model | Size(mm) | SD (cm2) |
TW (Kg/m) |
|||||
| h | b | tw | t | r | r1 | |||
| 5 | 50 | 37 | 4.5 | 7 | 7 | 3.5 | 6.92 | 5.44 |
| 6.3 | 63 | 40 | 4.8 | 7.5 | 7.5 | 3.8 | 8.45 | 6.63 |
| 8 | 80 | 43 | 5 | 8 | 8 | 4 | 10.24 | 8.04 |
| 10 | 100 | 48 | 5.3 | 8.5 | 8.5 | 4.2 | 12.74 | 10 |
| 12.6 | 126 | 53 | 5.5 | 9 | 9 | 4.5 | 15.69 | 12.31 |
| 14a | 140 | 58 | 6 | 9.5 | 9.5 | 4.8 | 18.51 | 14.53 |
| 14b | 140 | 60 | 8 | 9.5 | 9.5 | 4.8 | 21.31 | 16.73 |
| 16a | 160 | 63 | 6.5 | 10 | 10 | 5 | 21.95 | 17.23 |
| 16b | 160 | 65 | 8.5 | 10 | 10 | 5 | 25.15 | 19.75 |
| 18a | 180 | 68 | 7 | 10.5 | 10.5 | 5.2 | 25.69 | 20.17 |
| 18b | 180 | 70 | 9 | 10.5 | 10.5 | 5.2 | 29.29 | 22.99 |
| 20a | 200 | 73 | 7 | 11 | 11 | 5.5 | 28.83 | 22.63 |
| 20b | 200 | 73 | 7 | 11 | 11 | 5.5 | 32.83 | 25.77 |
| 22a | 220 | 77 | 9 | 11.5 | 11.5 | 5.8 | 31.84 | 24.99 |

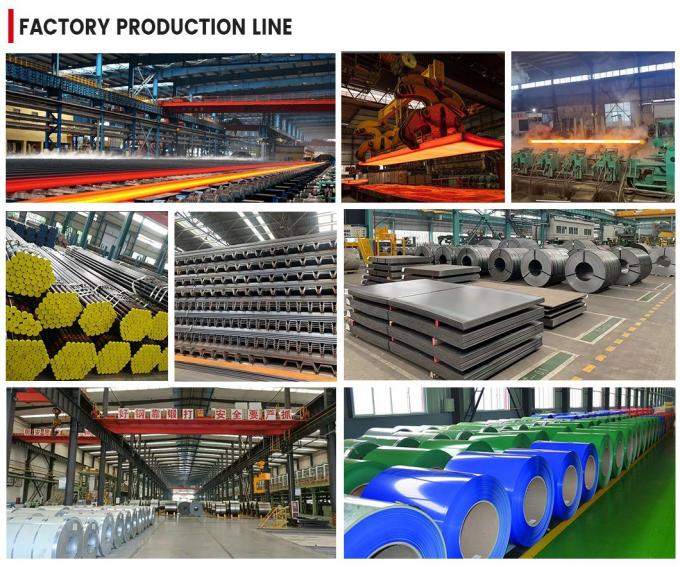

Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
